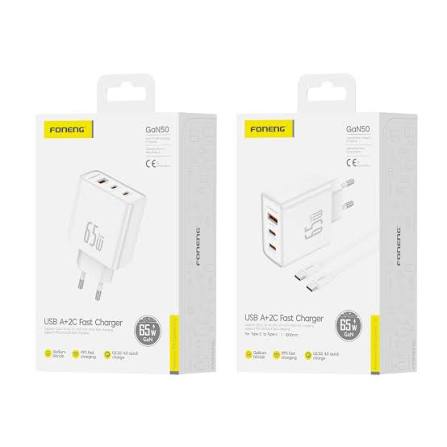

GaN50-EU 65W GaN Fast Charger – 2 USB-C + USB-A 3-Port Wall Charger

The GaN50-EU 65W GaN Fast Charger is a compact and powerful multi-port wall charger designed to charge smartphones, tablets, laptops, and other compatible USB devices efficiently. With a maximum output power of 65W, it features two USB-C ports and one USB-A port, giving you the flexibility to charge multiple devices from a single charger.

Its GaN (Gallium Nitride) charging technology allows for a compact design while delivering high-power charging performance. The charger supports multiple output configurations, making it suitable for everyday use at home, in the office, or while traveling.

Key Features

65W Maximum Fast Charging

The GaN50-EU delivers up to 65W of output power, making it suitable for charging a wide range of devices, from smartphones and tablets to compatible laptops and other USB-C electronics.

The main USB-C1 port supports up to 20V/3.25A, providing the charger’s highest single-port output capability.

3 Charging Ports

Charge multiple devices from one wall charger using:

• USB-C1: Up to 65W
• USB-C2: Up to 20W
• USB-A: Up to 18W

This 3-port configuration is ideal for users who need to charge several devices without carrying multiple power adapters.

USB-C & USB-A Compatibility

The charger combines USB-C and USB-A charging ports, making it compatible with newer USB-C devices as well as many existing USB-A cables and accessories.

Multiple Charging Combinations

The GaN50-EU intelligently distributes power when multiple ports are used simultaneously. It supports charging configurations for:

• USB-C1 + USB-C2
• USB-C1 + USB-A
• USB-C2 + USB-A
• USB-C1 + USB-C2 + USB-A

This allows you to charge multiple devices at the same time while the available power is distributed between the connected ports.

Compact GaN Design

With dimensions of only 52.5 × 87.5 × 29mm and a weight of approximately 106g, the charger is compact and lightweight enough for everyday carrying and travel.

Output Specifications

USB-C1

Single-port output:

• 5V ⎓ 3A
• 9V ⎓ 3A
• 12V ⎓ 3A
• 15V ⎓ 3A
• 20V ⎓ 3.25A

USB-C2

• 5V ⎓ 3A
• 9V ⎓ 2.22A
• 12V ⎓ 1.67A

USB-A

• 5V ⎓ 3A
• 9V ⎓ 2A
• 12V ⎓ 1.5A

Multi-Port Output

USB-C1 + USB-C2

• USB-C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• USB-C2: 5V/3A, 9V/2.22A, 12V/1.67A

USB-C1 + USB-A

• USB-C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• USB-A: 5V/3A, 9V/2A, 12V/1.5A

USB-C2 + USB-A

• Shared 5V/3A
• Or USB-C2: 5V/1.5A + USB-A: 5V/1.5A

USB-C1 + USB-C2 + USB-A

• USB-C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• USB-C2 + USB-A: Shared 5V/3A
• Or USB-C2: 5V/1.5A + USB-A: 5V/1.5A

Ideal For

The 65W GaN USB-C charger is suitable for charging compatible:

• Smartphones
• Tablets
• USB-C laptops
• Wireless accessories
• Smart devices
• Power banks
• Other USB-C and USB-A electronics

Technical Specifications

Specification	Details
Model	GaN50-EU
Type	Single / C-C
Maximum Output Power	65W
Input	100–240V, 50/60Hz, 1.8A
USB-C Ports	2
USB-A Ports	1
USB-C1 Maximum	65W
Weight	106 ± 1g
Product Size	52.5 × 87.5 × 29mm
Package Size	105 × 165 × 38mm

Why Choose the GaN50-EU?

The GaN50-EU 65W charger combines high-power charging, three charging ports, and a compact design in one convenient adapter. Whether you need a 65W laptop charger, USB-C fast charger, phone charger, or multi-device travel charger, its flexible port configuration makes it a practical charging solution for everyday use.
